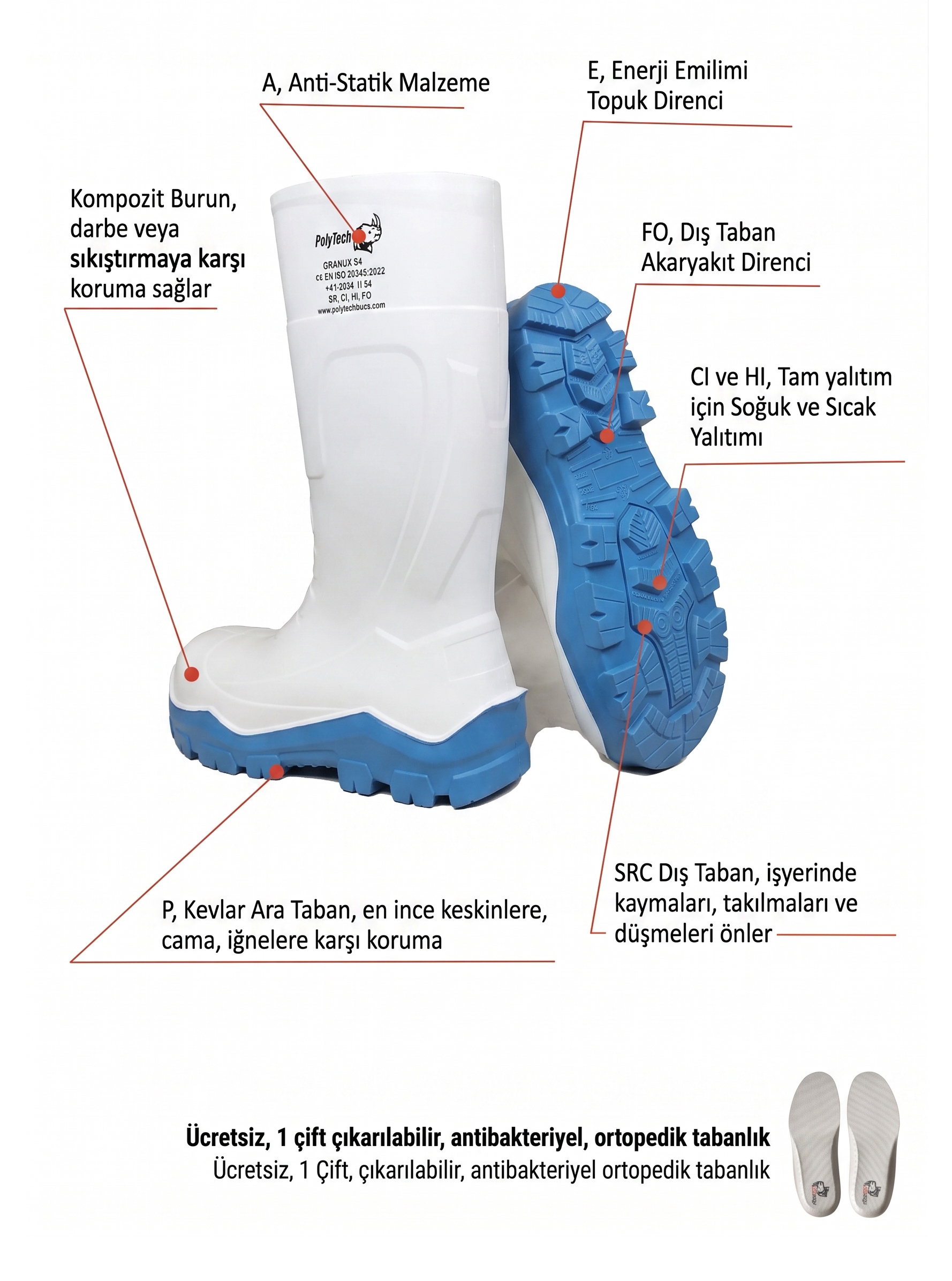

Protection components of a RHINO series boot: composite toe cap, non-metallic midsole, antistatic body

PU Technology

Why Polyurethane?

Polyurethane is selected for its combination of low weight, flexibility, insulation and resistance. We select the toe cap, midsole and inner lining according to working conditions.

  • The outsole varies by family: polyurethane on GRANOX and RHINO PU/PU, TPU on RHINO PU/TPU, rubber on RHINO-R.
  • Toe cap (steel or composite), midsole (metal or non-metallic), outsole (PU, TPU, rubber) and lining are determined separately.
  • Production: German DESMA direct injection line.
Explore Products Technical Documents

By Family

Materials and Protection Components

FamilyUpper and outsoleToe cap (S4, S5/S5L)Penetration resistant midsole (S5/S5L)Classes
GRANOXPolyurethane (PU) outsoleSteelSteel (P)O4 · S4 · S5
RHINO PU/PUPolyurethane upper, polyurethane outsoleComposite (non-metallic)Non-metallic (PL)O4 · S4 · S5L
RHINO PU/TPUPolyurethane upper, TPU outsoleComposite (non-metallic)Non-metallic (PL)O4 · S4 · S5L
RHINO-RPolyurethane upper, rubber outsoleComposite (non-metallic)Non-metallic (PL)O4 · S4 · S5L

Class O4 (EN ISO 20347) is occupational footwear without a protective toe cap or penetration resistant midsole. All models are antistatic (A) and have a fuel oil resistant outsole (FO), heat and cold insulation (HI, CI) and slip resistance (SR).

Model Example

RHINO-R S5L Boot: Parts List

  1. Upper: polyurethane.
  2. Toe cap: composite, non-metallic; 200 J impact protection as required by EN ISO 20345.
  3. Penetration resistant midsole: non-metallic (PL), large nail test, 4.5 mm.
  4. Outsole: rubber; slip resistance (SR, ceramic floor, glycerol) and fuel oil resistance (FO).
  5. Insulation: against heat (HI) and cold (CI).
  6. Antistatic: antistatic footwear (A).
  7. Insole: removable, antibacterial, orthopedic (1 pair free).

RHINO-R S5L product page

CE conformity marking
Test result: EU Type Examination Certificate (Module B)

RHINO-R S5L · EN ISO 20345:2022 + A1:2024 · Class S5L · Additional markings: SR, HI, CI, FO

Notified body: SGS · Certificate no 2218/PPE/25/010

Issued 20 Jun 2025 · Valid until 20 Jun 2030

Download certificate (PDF, 693 KB)
